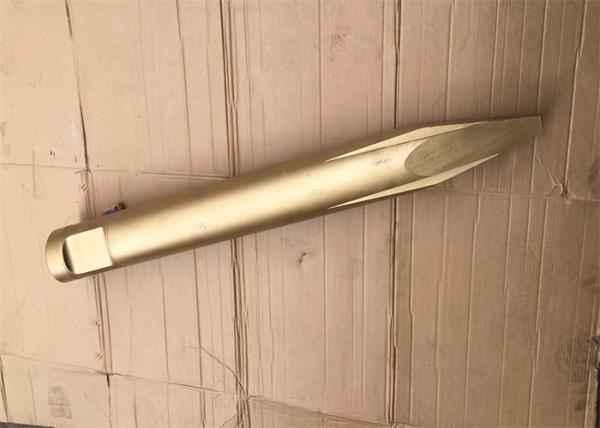

    Excavator Drill Hydraulic Rock Breaker Chisels KRUPP AT170 AT220 HM45

    Ask Lasest Price
    Brand Name : Zhongxing
    Model Number : AT20 AT70 AT120 AT170 AT220 HM45 HM50/55/51 HM60V HM60/75/61
    Certification : OEM
    Price : Negotiable
    Payment Terms : T/T, Western Union,RMB
    Delivery Time : 3-15 days
    MOQ : 1pc
    • Product Details
    • Company Profile

    Excavator Drill Hydraulic Rock Breaker Chisels KRUPP AT170 AT220 HM45

    Hydraulic hammer drill rod is not used for a long time. please keep it as follows:

    Clean up the outside of the crushing hammer.
    After removing the steel braze from the shell, the anti-corrosion oil is coated.
    Before pushing the piston into the nitrogen chamber, the nitrogen in the nitrogen chamber must be discharged.
    When reassembling, the parts on the crushing hammer should be coated with lubricating oil before assembling.

    If a crushing hammer is to be installed, the process is contrary to the disassembly sequence mentioned above. if the bucket operation is carried out, the hose and the end of the pipeline will be easily contaminated. the contaminated part should be cleaned up immediately (please use hydraulic oil or diesel oil for cleaning).


    Product Specification
    ModelDiameter(mm)Length(mm)Weight(kg)
    AT20424105
    AT70525308
    AT1206260010
    AT1707074022
    AT2208080029
    HM45424706
    HM50/55/51455607
    HM60V485006
    HM60/75/615559010
    HM85/90V6260011
    HM100/1106570018
    HM130/131/135/140V6578018
    HM170/185/190V7580025
    HM2008083529
    HM220V8090030
    HM230V8080028
    HM300/301/3058090030
    HM350V8090040
    HM400/4018080027
    HM550/560CS/V100100055
    HM580100100055
    HM600/601100100055
    HM680120110087
    HM720CS/711/715115106082
    HM700/701/702/705115115086
    HM710/720CS/V115108082
    HM780120110087
    HM780V120110089
    HM8001351150115
    HM900/901/9021351150115
    HM905/960CS/V1351100110
    HM10001401200130
    HM1000V1401200128
    HM12001501250155
    HM1300/1500CS/V1501200151
    HM1800/2000CS/V1601400220
    HM21001651300220
    HM2200/2500CS/V1801500270


    FAQ:


    Q1: Are you a manufacturer factory?
    Yes,we are the direct manufacture factory located in Guangzhou,China. We are specialized in

    offering all kinds of excavator parts with 16 years experience.

    Q2 : What is the normal packing?
    Standard export packing or as you required

    Q3 : Can I order saple before placing mass order?
    Yes, sample order is welcomed.

    Q4 : What is the payment terms?
    TT, Western Union or as you required
