Main control valves are core elements necessary for the operation
of excavators. Piston pumps that form the oil pressure using engine
power and main control valves convey the oil pressure to each part.
After this, the main control valves which are hydraulic devices
help excavators move forward or backward and operate.

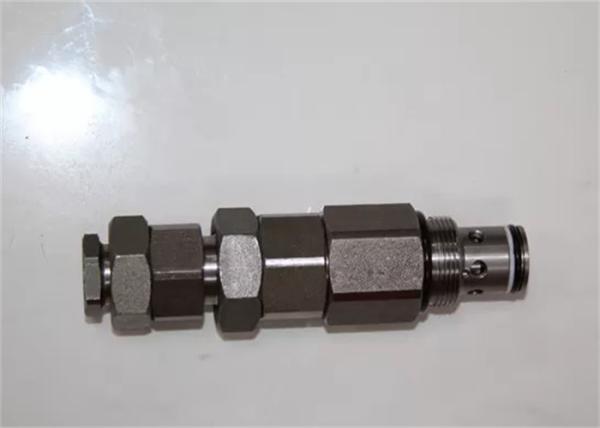

VOE14591508 14591508 Swing Motor Relief Valve For VOLVO Excavator
Spare Parts
Quick Details
| Product name | Main relief valve |
| Part number | VOE14591508 14591508 |
| Model | EC200B EC210B EC235D EC250D EC300D |
| Category group | VOLVO Excavator Spare Parts |
| MOQ | 1 PC |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 3-15 Days |
| Packing | Standard Export Carton or as You Required |
| Means of transport | By Sea, By Air, By Express |
Application
EXCAVATOR EC200B EC210B EC235D EC250D EC300D PL3005D Volvo.Heavy
More relief valve Applied To VOLVO Excavator
VOE14500110 Relief valve
EC140B, EC160B, EC180B, EC210B, EC240, EC240B, EC290B, EC330B,
EC360, EC360B, EC460, EC460B, EC700B
VOE14568912 Relief valve
EC250D, EC250E, EC300D, EC300E, EC340D, EC350D, EC350E, EC380D,
EC380DHR, EC380E, EC380EHR, ECR305C, PL3005D
VOE14616531 Relief valve
EC250D, EC290B, EC290C, EC300D, EC480E, EC480EHR, EC750D, EC750E,
EC950E, ECR305C, FC3329C, PL3005D, PL4809E
VOE14617938 Relief valve
EC120D, EC140D, EC140E, EC170D, EC220D, EC220E, EC235D, EC250D,
EC250E, EC300D, EC300E, EC350E, EC380DHR, EC380EHR, EC480DHR,
EC480E, EC480EHR, EC700CHR, EC750D, EC750E, ECR145E, ECR235E,
EW140E
VOE14617960 Relief valve
EC120D, EC140D, EC140E, EC170D, EC220D, EC220E, EC235D, EC250D,
EC250E, EC300D, EC300E, EC350E, EC380DHR, EC380EHR, EC480DHR,
EC480E, EC480EHR, EC700CHR, EC750D, EC750E, ECR145E, ECR235E,
EW140E
VOE14543998 Volvo.Heavy
VOE14543998 Relief valve
EC200B, EC210B, EC240B, EC240C, EC290B, EC290C, FC2924C, FC3329C
VOE14535259 Relief valve
EC210C, EC220D, EC235C, EC235D, ECR235C, ECR305C, EW205D, FC2121C,
FC2421C
VOE14513267 Relief valve
EC135B, EC140B, EC140D, EC160B, EC180B, EC200B, EC200D, EC210B,
EC210D, EC240B, EC240C, EW145B, FC2924C
VOE14591251 Relief valve
EC250D, EC250E, EC300D, EC300E, PL3005D
VOE14592299 Relief valve
EC220D, EC235D, EC250D, EC250E, EC300D, EC300E, ECR235D, PL3005D
VOE14389567 Relief valve
EC210C, EC240C, EC250D, EC250E, EC330C, EC340D, EC350E, EC380D,
EC380E, EW140C, EW160C, EW180C, EW210C, EW230C
VOE21843614 Relief valve
EC250D, EC250E, EC300D, EC300E, EC350D, G900B, G900C, L110G, L110H,
L120G, L120H, P7110, P7110B, P7170, P7170B, P7820C ABG, P8820C ABG,
PL3005D
VOE17209849 Relief valve
MC110C-MCT145C
VOE17202848 Relief valve
EW140C, EW140D, EW160C, EW160D, EW160E, EW180C, EW180D, EW180E,
EW210C, EW210D, EW230C, EWR150E
VOE14503913 Relief valve
Volvo.Heavy
RM56290182 Relief valve
ABG325, ABG9820
PJ5220059 Relief valve
EC45, EC70, EC70VV, EW70, EW70VV
VOE14526593 Relief valve
ECR58, ECR58D
VOE14513691 Relief valve
EC290B
RM59114330 Relief valve
DD90
VOE14506684 Relief valve
EC160C, EC180C, EC210C, EC235C, EC240C, EC250D, EC290C, EC300D,
EC330B, EC350E, EC360B, EC380DHR, EC380E, EC380EHR, EC460B, EC480D,
EC480DHR, EC480E, EC480EHR, EC700B, EC700BHR, EC700C, EC700CHR
VOE14534998 Relief valve
EC700B, EC700BHR, EC700C, EC700CHR, EC750D, EC750E
VOE14517323 Relief valve
EC55B, EW55B
VOE14607723 Relief valve
EC80D, ECR88, ECR88D
Diagram parts list
Pos. Part No Qty Parts name Comments
VOE14595269 [1] Swing motor
1. VOE14600787 [1] Casing
1. SA8230-25950 [2] Spring Pin
2. VOE14596320 [1] Shaft
3. VOE14501798 [2] Plunger
4. VOE14501799 [2] Spring
5. VOE14600785 [1] Roller bearing
6. VOE14501802 [2] Plug
7. VOE14591508 [2] Relief valve
8. VOE990582 [1] O-ring
9. VOE14511643 [3] Screw
10. VOE14596323 [1] Piston
11. VOE14601384 [1] Casing
12. VOE14596315 [1] Plate
13. VOE14562617 [1] Piston
14. VOE14596317 [1] Plate
15. VOE14594770 [4] Plate
16. VOE14596308 [3] Plate
17. VOE14596316 [1] Plate
18. VOE14596313 [1] Cover
19. VOE14596318 [1] Spring
20. VOE14596309 [14] Spring
21. SA8230-25551 [1] O-ring
22. VOE14596312 [1] Ring
23. SA8230-25820 [4] Bolt
24. VOE14596311 [1] Roller bearing
25. VOE14594354 [3] Plug
26. VOE14562616 [1] Seal
27. VOE14550664 [1] Valve
28. VOE14594353 [2] Plug
29. VOE14600784 [1] Plug
30. VOE14596319 [1] Cylinder
31. VOE14562615 [1] O-ring
32. SA8230-33960 [1] O-ring
33. VOE14558299 [1] Valve
34. VOE14550661 [1] Casing
35. VOE14550218 [2] Plug
36. VOE983502 [2] O-ring
37. VOE14529757 [2] O-ring
38. VOE14533603 [2] O-ring
39. SA8240-03610 [4] Screw
40. VOE14558298 [2] Valve
41. VOE983509 [1] O-ring
42. VOE14625240 [1] Ring
43. VOE983530 [2] O-ring
44. SA8230-33960 [1] O-ring
45. SA8240-03280 [1] Plug
VOE14601385 [1] Sealing kit
