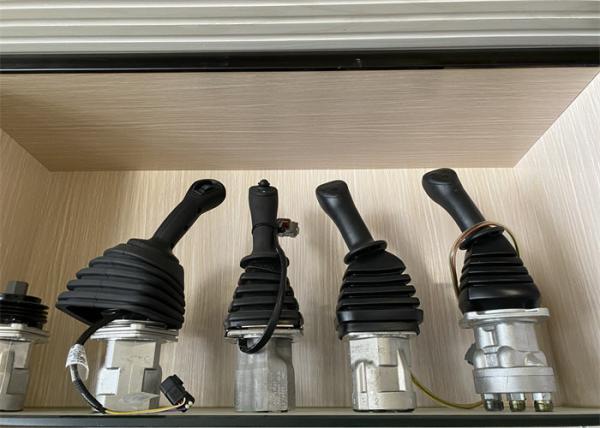

R380LC 9 Excavator Electrical Parts Control Lever 31Q8 20030 31Q8 20040

Ask Lasest Price
Brand Name :	Zhongxing
Model Number :	R300LC9 R320LC9 R380LC9 R480LC9 R520LC9
Certification :	OEM
Price :	Negotiable
Payment Terms :	T/T, Western Union,RMB

Add to Cart

Product Details
Company Profile

R380LC 9 Excavator Electrical Parts Control Lever 31Q8 20030 31Q8 20040

31Q8-20030 31Q8-20031 31Q8-20040 31Q8-20041 31Q820030 31Q820040 Remote Control Lever For R380LC-9 HYUNDAI Excavator Parts

Application

9-SERIES CRAWLER EXCAVATOR R290LC9 R300LC9S R300LC9SH R320LC9 R330LC9S R360LC9 R380LC9SH R390LC9 R480LC9 R480LC9S R520LC9 Hyundai

More RCV lever Applied To HYUNDAI machine

31K8-25080 RCV LEVER(RH)

HX300L, R1200-9, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R380LC9SH, R430LC9, R430LC9A, R430LC9SH, ...

31KA-22020 RCV HANDLE-RH

HW140, HW210, HX140L, HX160L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, R140W9, R140W9A, R160W9A, R170W9, R180W9A, R180W9S, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R210W-9, R21...

31KA-22010 RCV HANDLE-LH

31K8-21010 RCV LEVER(LH)

HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R1200-9, R260LC9S, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R...

31K8-21020 RCV LEVER(RH)

31K8-25010 RCV LEVER(LH)

31K8-25020 RCV LEVER(RH)

31K8-25050 RCV LEVER(LH)

31K8-25060 RCV LEVER(RH)

31KA-21150 RCV LEVER(LH)

HX300L, HX330L, HX380L, HX430L, R210W9AMH, R210W9MH, R260LC9S, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

31KA-21160 RCV LEVER(RH)

HX300L, HX330L, HX380L, HX430L, R210W9AMH, R210W9MH, R260LC9S, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

31KA-21250 RCV LEVER(LH)

HX300L, HX330L, HX380L, HX430L, R210W9AMH, R210W9MH, R260LC9S, R290LC9, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH

31QA-20141 RCV LEVER-RH

R210W9AMH, R210W9MH

31QA-20131 RCV LEVER-LH

R210W9AMH, R210W9MH

31QA-21023 RCV LEVER SUB-RH

R140W9, R140W9A, R170W9, R180W9A, R180W9S, R210LC9, R210W-9, R220LC9A

31QA-21113 RCV LEVER-LH

Hyundai

31QA-21013 RCV LEVER SUB-LH

R140W9, R140W9A, R170W9, R180W9A, R180W9S, R210LC9, R210W-9, R220LC9A

31QA-20113 RCV LEVER-LH

Hyundai

31QA-20023 RCV LEVER ASSY-RH

R140W9, R140W9A, R170W9, R180W9A, R180W9S, R210LC9, R210W-9, R220LC9A, R55-9

31QA-20013 RCV LEVER ASSY-LH

R140W9, R140W9A, R170W9, R180W9A, R180W9S, R210LC9, R210W-9, R220LC9A, R55-9

31Q6-21023 RCV LEVER SUB-RH

HX180L, R125LCR-9A, R140LC9, R140LC9A, R140LC9S, R140LC9V, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R160LC9, R160LC9A, R160LC9S, R170W9, R170W9S, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R21...

31Q6-21022 RCV LEVER SUB-RH

R140LC9, R140W9, R145CR9, R160LC9, R170W9, R180LC9, R210LC9, R210NLC9, R210W-9, R235LCR9, R250LC9

31Q6-21013 RCV LEVER SUB-LH

31Q6-21012 RCV LEVER SUB-LH

R140LC9, R140W9, R145CR9, R160LC9, R170W9, R180LC9, R210LC9, R210NLC9, R210W-9, R235LCR9, R250LC9

31Q8-20031 RCV SUB ASSY-LH

31Q8-20040 RCV SUB ASSY-RH

R290LC9, R300LC9S, R300LC9SH, R320LC9, R330LC9S, R360LC9, R380LC9SH, R390LC9, R480LC9, R480LC9S, R520LC9

31Q8-20041 RCV SUB ASSY-RH

31Q8-21030 RCV LEVER(LH)

R290LC9, R300LC9S, R300LC9SH, R320LC9, R330LC9S, R360LC9, R380LC9SH, R390LC9, R480LC9, R480LC9S, R520LC9

31Q8-21031 RCV LEVER(LH)

31Q8-21040 RCV LEVER(RH)

R290LC9, R300LC9S, R300LC9SH, R320LC9, R330LC9S, R360LC9, R380LC9SH, R390LC9, R480LC9, R480LC9S, R520LC9

31Q8-21041 RCV LEVER(RH)

31M9-20011 RCV SUB ASSY-LH

R55-9, R55W-9, R60CR-9, R80CR-9

31M9-20012 RCV SUB ASSY-LH

R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R60CR-9, R60CR-9A, R80CR-9, R80CR-9A

31MA-20013 RCV LEVER(LH)

R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R60CR-9, R60CR-9A, R80CR-9, R80CR-9A

31M9-20021 RCV SUB ASSY-RH

R55-9, R55W-9, R60CR-9, R80CR-9

31M9-20022 RCV SUB ASSY-RH

R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R60CR-9, R60CR-9A, R80CR-9, R80CR-9A

Diagram parts list

Pos.	Part No	Qty	Parts name	Comments
*.	31Q8-20030	[1]	RCV SUB ASSY-LH
*.	31Q8-20031	[1]	RCV SUB ASSY-LH
*.	31Q8-20040	[1]	RCV SUB ASSY-RH
*.	31Q8-20041	[1]	RCV SUB ASSY-RH
*-1.	31Q8-21030	[1]	RCV LEVER(LH)
*-1.	31Q8-21031	[1]	RCV LEVER-LH
*-1.	31Q8-21040	[1]	RCV LEVER(RH)
*-1.	31Q8-21041	[1]	RCV LEVER-RH
1	XKAY-01706	[1]	CASE
2	XKAY-01708	[1]	BUSHING
*-2.	XKAY-01709	[2]	SPOOL KIT(1,3)	PORT 1,3
*-2.	XKAY-01973	[2]	SPOOL KIT(2,4)	PORT 2,4
N3.	XKAY-01711	[1]	SPOOL
N4.	XKAY-00772	[1]	SHIM
N5.	XKAY-01420	[1]	SPRING(1,3)	PORT 1,3
N6.	XKAY-00436	[1]	SEAT-SPRING(1,3)	PORT 1,3
N7.	XKAY-00058	[1]	STOPPER	4SET
N9.	XKAY-01749	[1]	SPRING
N11.	XKAY-01443	[1]	SPRING(2,4)	PORT 2,4
N12.	XKAY-01444	[1]	SEAT-SPRING(2,4)	PORT 2,4
*-3.	XKAY-01918	[2]	PLUG KIT(1,3)	PORT 1,3
*-3.	XKAY-01974	[2]	PLUG KIT(2,4)	PORT 2,4
N8.	XKAY-00052	[1]	ROD-PUSH(1,3)	PORT 1,3
N10.	XKAY-01137	[1]	ROD-PUSH(2,4)	PORT 2,4
N13.	XKAY-01714	[1]	PLUG
KN14.	XKAY-00785	[1]	O-RING
KN15.	XKAY-01715	[1]	SEAL-ROD
16	XKAY-01716	[1]	PLATE
17	XKAY-00786	[1]	BOOT
18	XKAY-01717	[1]	JOINT ASSY
19	XKAY-01066	[1]	PLATE-SWASH
20	XKAY-00047	[1]	NUT-HEX
*-4.	XKAY-01718	[1]	HANDLE KIT-LH
*-4.	XKAY-01719	[1]	HANDLE KIT-RH
N21.	XKAY-00046	[1]	NUT-LOCK
N22.	XKAY-01720	[1]	HANDLE ASSY-LH
N22.	XKAY-01721	[1]	HANDLE ASSY-RH
N23.	XKAY-01722	[1]	BAR-HANDLE
N24.	XKAY-00811	[1]	NUT
N25.	XKAY-01083	[1]	BOOT
N26.	XKAY-00662	[2]	PIN-SPRING
27	XKAY-00074	[1]	BUSHING
41	XKDB-00034	[5]	CONNECTOR-ORFS	PORT 1,2,3,4,T
42	XKDB-00032	[6]	O-RING
43	XKDB-00035	[1]	FILTER-LAST GUARD	PORT P
44	XKDB-00036	[6]	O-RING
K.	XKAY-01723	[1]	SEAL KIT	SEE ILLUST
N.	@	[AR]	NOT SUPPLIED PARTS
