SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1

    Buy cheap SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1 from wholesalers

    Buy cheap SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1 from wholesalers
    • Buy cheap SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1 from wholesalers
    • Buy cheap SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1 from wholesalers

    SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1

    Ask Lasest Price
    Brand Name : Zhongxing
    Model Number : 2425U261F1
    Certification : OEM
    Price : Negotiable
    Supply Ability : 10000pcs/month
    • Product Details
    • Company Profile

    SK75UR OEM Digger Excavator Swing Bearing Slew Ring 2425U261F1

    Swing gears handle a lot of stress throughout their life and improper care can lead to replacement needs earlier than usual. Some of the most common reasons for swing gear failures include lack of lubrication, overloading or overworking the machine and outside contamination.


    Excavator 2425U261F1 slewing ring bearing SK75UR swing bearing


    Quick Detail


    Application
    Crawler excavator
    Part name
    Slew ring bearing
    Model
    SK75UR
    Part number
    2425U261F1
    Warranty
    Negotiable
    Payment term
    T/T, Western Union
    After sales service
    Online

    2425U261F1 Small Slewing Ring , SK75UR Swing Bearing Excavator 0

    Pos.Part NoQtyParts nameComments
    . .LP40F00001F1[1]RINGKOB Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1 Superseded by part number: LP40F00001F4
    1.24100N7529F1[1]RINGKOB Slewing Assembly, Incls. Refs. 1-1 - 1-9, Service Replacement
    1-1.2425N373F1[1]RACEKOB Outer
    1-1A.NA[1]NOT SERVICEDFOR Race, Outer
    1-1B.2420T4543D2[1]PLUGKOB
    1-1C.2419T1964D7[1]PIN,10mm OD x 56mm LKOB Taper -- OD 10 x 56mm Long
    1-2.2401N443[1]RACEKOB Inner
    1-3.2425T321[108]BALLKOB Ø25.4mm (1 in) Steel
    1-4.2425T322[108]RETAINERKOB
    1-5.2445P165D6[1]SEALKOB Superseded by part number: YN40F01024D4
    1-6.2445P165D5[1]SEALKOB Superseded by part number: YN40F01024D4
    1-7.2432T1265[1]LABELKOB Name Plate Superseded by part number: YN22T00191P1
    1-8.4020Z64[2]RIVETKOB OD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7
    1-9.ZG91S02000[1]LUBE NIPPLE,1/8" NPT x 1/8" NPTKOB 1/8" PT -- Straight
    1-10.2414Z307[1]CAPKOB
    3.ZS13C16045[36]SCREWKOB Screw -- M16x2.0x45mm
    . .2445P114D7[1]SEAL KITKOB Kit -- Contains Items 1-5 & 1-6 Superseded by part number: YN40F01024D4
    . .LP40F00001F2[1]Slewing Ring Assembly, Used in production, For Service Only 24100N7529F1
    2.YW40F00001F1[1]SLEWING RINGKOB Superseded by part number: 24100N7529F1
    2-1.NSS[1]NOT SOLD SEPARATCON
    2-2.NSS[1]NOT SOLD SEPARATCON
    2-3.2425T321[108]BALLKOB Ø25.4mm (1 in) Steel
    2-4.2425U238S4[108]CAP
    2-5.NSS[1]NOT SOLD SEPARATCON
    2-6.2425U238S6[1]PINKOB TAPER
    2-7.YW40F00001S007[1]SEALKOB
    2-8.2425U238S8[1]SEALKOB
    2-9.ZG91S02000[1]LUBE NIPPLE,1/8" NPT x 1/8" NPTKOB 1/8" PT -- Straight

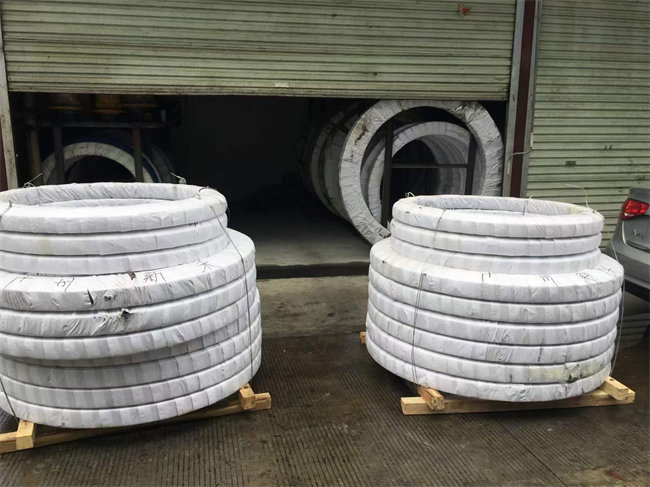

    Packing
    FAQ
    Q: What are the main products?
    A :Our main products are breaker hammer parts and other excavator parts.

    Q: What is your minimum order quantity?
    A :No MOQ, you can buy 1pc at first

    Q: Do you accept OEM order?
    A :Yes, OEM is available, welcome to tell us your requirements.

    Q : What is the normal packing?
    A :Standard export packing or as you required
